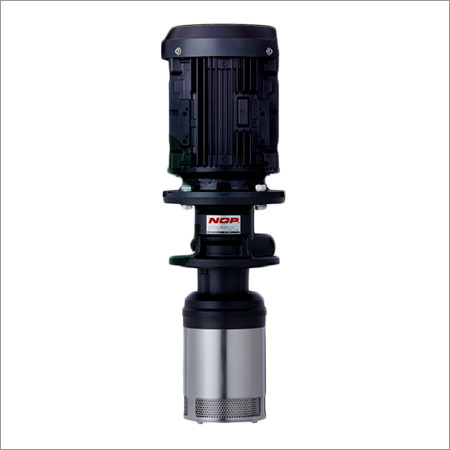

NOP Coolant Unit YTH CT

NOP Coolant Unit YTH CT
NOP Coolant Unit YTH CT
Product Code : CT
Product Description

Backed by more the 02 years of dedication, we offer the finest NOP Coolant Unit YTH Pumps to clients. Made up of top-notch stainless steel and other basic material, this is acknowledge for hassle-free functionality, less maintenance needs, wear & tear resistance and long lasting nature. We offer the NOP Coolant Unit YTH Pumps in varied weights, capacity and other specifications at moderate rates. In addition, we deliver these pumps in protective packaging to clients within promised time frame.

Salient Features :

  • Pump: TrochoidTM
  • Motor: 750~1500 W/AC
  • Flow rate: 12~28.8 /min
  • Maximum Pressure: 2.0 MPa

Double-cyclone filter

  • Two layers of double cyclones (one large cyclone and six small cyclones) remove chips from the coolant fluid.

TrochoidTM pump/ 2.0 MPa, 1.5 MPa

  • 1.5A rotor turning in a trochoidal curve generates pressure to suck and discharge fluid. This is an extremely efficient self-priming pump.

Compatible with the TAZUNATM fluid control system (software)

  • TAZUNATM reduces the electric power cost further by approximately 20%.
  • TM The pressure and flow rate are automatically adjusted.

Model Numbering System

Motor Capacity

750 : 0.75 kW

1500 : 1.5 kW

Motor Typed

Standard motor

A3 AC 200/200/220/230 V
50/60/60/60 Hz
3 phase electric induction motor(IE3) with CE marking

Local

Motor

AE: supplied by NOP Deutschl and (Germany)
AF: supplied by NOP Taiwan
AJ: supplied by NOP Asia (China)
AK: supplied by NOP India

For further details about the local motor, please contact to our overseas branch or subsidiaries.

Rotor Capacity


T208: Trochoid TM pump, 8cc / rev

T206: Trochoid TM pump, 16cc / rev

Filtering method

C : Double-cyclone type

Relief Valve

VD : External return type

Relief Pressure setting

20 : 2.0 MPa

15 : 1.5 MPa

Specification:

Item Model

Motor Capacity (kW)

Flow Rate (& min) 50 Hz/ 60 Hz

Maximum Pressure (MPa)

Approximate weight (kg)

YTH750A3-T208CVD *

0.75

12.0 / 14.4

2.0

34

YTH1500A3-T216CVD *

1.5

24.0 / 28.2

39

Dimensional :

Item Model

L

B

C

W

Q

H

M

D

I¸(o)

TB

YTH750A3-T208CVD *

599.7

235.7

206.7

175.7

20

364

253.5

170

30

151

YTH1500A3-T216CVD *

639.2

255.7

226.7

195.7

40

383.5

273

202

45

168

World's First - All-in-one, Medium-pressure Coolant Pump

This is a basic YTH model consolidating a large coolant system into one unit. Simply replace a conventional medium-pressure pump with YTH-CT to reduce the occupied space to 1/20th by volume. The saved space expands the available plant space, resulting in a higher production efficiency.

  • Maximum operating pressure: 2.0 MPa
  • Maximum flow rate: 28.8 liters/min
  • No suction filter is required
  • No clean tank is required
  • Applicable only to continuous running (intermittent running is not applicable)
  • No transfer pump is required on the coolant tank end
  • No plumbing is required to interconnect various components

Double-cyclone Filter

A proprietary double-cyclone system removes chips. The first cyclone removes larger debris, while the second cyclones remove smaller particles. The line-filter cleaning cycle is extended by 24 times.

Chips larger than 20µm in size is removed (when using water-soluble coolant fluid).

Compatible types of chips :

Material

Iron

Casting

Aluminium

Copper

Compatibility

Excellent

Excellent

Good

Excellent

  • No liquid containing abrasive stone/grain is allowed
  • Please contact us for the use of High Silicon Aluminum

Filtering Performance :

Suction Strainer

3mm (Solids larger than this must be removed in the tank)

Filter

50µm: 95% (specific gravity 2.7)
100µm: 99% (specific gravity 2.7)

High-efficiency TrochoidTM Pump

YTH-CT uses a TrochoidTM pump which excels in fluid control efficiency. The double-cyclone system sorts out chips and enables direct connection to the coolant tank.

Compatible types of fluid

  • Water-soluble coolant fluid
  • Not for water-insoluble coolant fluid, lubricant oil or fuel oil
  • Not for clear water, purified water, aqueous solutions and viscous fluids without rust-preventive property, corrosive liquid, solvents, and oils
  • Relief valve is built into the unit.

Huge Energy Saving Effect Reduces Utility Costs

The use of YTH-CT results in huge energy savings over the conventional centrifugal pumps. The electric power cost is greatly reduced.

  • Operating cycle: total 80 seconds cycle
    • Unload (0MPa) 20 sec. Coolant through (1.1 MPa) 20 sec.
    • Unload (0MPa) 20 sec. Coolant through (1.1 MPa) 20 sec.
  • The calculation is based on operation 8hours/day, 365days/year, and the electric power billed at ¥20/kWh.

Results may differ according to the conventional pump specifications and the machining conditions reference data

Series name

C SERIES CT
(Specification : Double cyclone filter + TrochoidTM pump)

C SERIES CI
(Specification: Cyclone filter + Impeller pump)

Specifications for pump proper

Pump model

T208
50Hz / 60Hz

T216
50Hz / 60Hz

I155

I152

I305

I302

Flow rate (l /min)

12.0 / 14.4

24.0 / 28.8

150 (Maximum)

300 (Maximum)

Compatible fluid

Water-soluble coolant fluid

Maximum allowable viscosity (mm2/s)
(Filtering performance)

22

2

Liquid temperature range (oC)

-5 -60

Rotational speed (r/min)

1500 / 1800

3000

3600

3000

3600

Maximum pressure (MPa)

2.0

-

Total pump head (m)

-

55

40

65

45

Filter type

Cyclone x 2 stages

Cyclone x 1 stage

Filtering performance

100µm: 99.9~50µm: 95% (Silica sand: specific gravity2.7)

Contaminant drain port flow rate (l/min)

30~40
(Pressure 0.02MPa)

20~35
(Pressure 0.02MPa)

25~40
(Pressure 0.02MPa)

45~60
(Pressure 0.02MPa)

50~70
(Pressure 0.02MPa)

Remarks

Install a plate filter of #18 or finer mesh on the suction end of the tank.

Painted color of the pump section

Flat black (Approximately Munsell N1.0)

Approximate weight (kg)

16

23

34

33

Relief valve specifications

Type

External return type

-

Relief pressure setting (MPa)

2.0 / 1.5

-

Motor specifications*1

Model No.

750A3

1500A3

1500AC

3700AC

Specifications

3-phase, squirrel-cage induction motor, totally enclosed, external fan, flange-mounting configuration

Output (kW)

0.75

1.5

1.5

3.7

Voltage (V)

200/200/220/230

200/200/220/230

200/200/220/230

200/200/220/230

Frequency (Hz)

50/60/60/60

50/60/60/60

50/60/60/60

50/60/60/60

Rotational speed (r/min)

1440/1730/1745/1745

1445/1740/1750/1755

2890/3460/3485/3495

2910/3490/3515/3525

Rating

S1

Current (A)

3.80/3.40/3.40/3.40

6.80/6.40/6.00/6.00

6.00/5.80/5.40/5.20

13.6/13.2/12.2/11.8

Number of phases

3

Number of poles

4P

2P

Insulation class

F

Approximate weight (kg)

18

23

20

36

Protection rating

IP55

Efficiency class

IE3

Compliance CE
