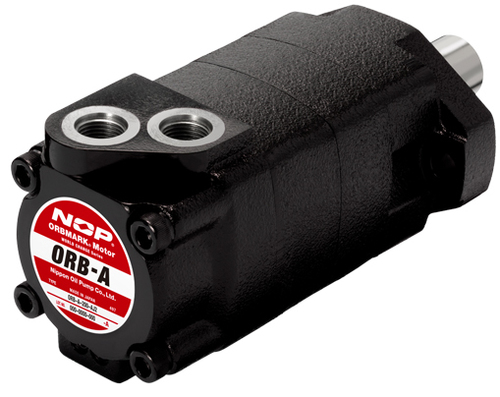

World Change Series ORB-A

World Change Series ORB-A
World Change Series ORB-A
Product Code : ORB-A
Product Specifications
  • Product Type
  • Induction Motor
Product Description

Specifications

Item / Model A-080 A-100 A-125 A-160 A-200 A-250 A-290 A-315 A-390
Theoretical Displacement (cm3/rev) 78 97 123 158 195 244 288 306 393
Normal Continuous Revolution (min-1) 850 690 550 430 350 280 250 230 190
Max. Revolution (min-1) 850 850 690 540 440 350 300 280 230
Normal Continuous Torque (N・m) 235 284 324 334 373 373 422 432 441
Max. Instantaneous Torque (N・m) 343 383 392 471 520 579 608 608 638
Normal Continuous Pressure (ΔP MPa) 20.6 20.6 18.1 14.7 13.2 10.8 10.3 9.8 7.8
Max. Instantaneous Pressure (ΔP MPa) 30.9 27.4 22.1 20.6 18.6 16.7 14.7 13.7 11.3
Permissible Back Pressure (MPa) 6.9
Approx. Weight (kg) 10.1 10.3 10.6 10.9 11.1 11.8 12.2 12.4 13.2
